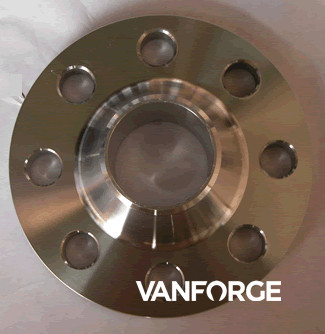

High Hardness Raised Face Forged Steel Flange 150LBS For Petrochemical

Name: High Hardness Raised Face Forged Steel Flange 150LBS For Petrochemical
Brand: VANFORGE
Price: 1 USD

China High Hardness Raised Face Forged Steel Flange 150LBS For Petrochemical wholesale

Brand Name : VANFORGE

Certification : ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED

Place of Origin : China

MOQ : 10 pcs

Payment Terms : L/C, T/T

Supply Ability : 3000 pcs per month

Delivery Time : 30 days

Packaging Details : Seaworthy package for export

Material : Austenitic stainless steels, duplex stainless steels

Process : Forged, machined

Treatment : Stress-relieved

Surface : Bright

Application : Petrochemical, chemical, paper and pulp

Feature : High precision

Standard : ANSI, ASTM, ASME, EN, DIN, JIS, GOST

Price : Negotiable

Contact Now

ASTM A182 ASME B16.5 150LBS forged stainless steel socket welding flange

Vanforge holds a large stock of ANSI/ASME flanges in various types of stainless steels. Our program of stainless ANSI/ASME flanges covers the following materials:

Austenitic stainless steels: ASTM 304/304L and ASTM 316/316L
Duplex stainless steel: UNS S31803 / EN 1.4462
Super-duplex stainless steel: UNS S32750 / EN 1.4410

Standard specification for ANSI/ASME flanges from stock

Flanges, forged, ASTM A182, F304/304L or F316/316L (dual marked and certified), ASME B16.5, annealed and fully machined, raised face, smooth finish (125-250 RMS / 3.2-6.3µM) to MSS-SP6, hardness to NACE MR0175 latest edition. IC checked to ASTM A262 E and PMI tested.

Vanforge's ANSI/ASME flanges are certified according to EN 10204/3.1.

Stainless steel socket welding flange, 150LBS

Technical date:

High Hardness Raised Face Forged Steel Flange 150LBS For Petrochemical

ASTM A182, ASME B16.5
Sch 40S

Raised face, smooth finish (125-250 RMS / 3.2-6.3 µm)

Product code example:

FFSW-304L-2-150-40S

Pipe		Flange						Hub	Raised face	Drilling template			Weight	Standard
Nom.size	O.D.	D	J	c	P	b	h	m	g	No. ofholes	l	k	kg/pce	ASTM 304L	ASTM316L
in.	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm
1/2 3/4 1 1 ¼	21.3 26.7 33.4 42.2	88.9 98.6 108.0 117.3	22.4 27.7 34.5 43.2	15.7 20.8 26.7 35.1	9.7 11.2 12.7 14.2	11.2 12.7 14.2 15.7	15.7 15.7 17.5 20.6	30.2 38.1 49.3 58.7	35.1 42.9 50.8 63.2	4 4 4 4	15.7 15.7 15.7 15.7	60.5 69.9 79.2 88.9	0.42 0.59 0.81 1.07	● ● ● ●	● ● ● ●
1 ½ 2	48.3 60.3	127.0 152.4	49.5 62.0	40.9 52.6	15.7 17.5	17.5 19.1	22.4 25.4	65.0 77.7	73.2 91.9	4 4	15.7 19.1	98.6 120.7	1.36 2.10	● ●	● ●

Production facilities:

High Hardness Raised Face Forged Steel Flange 150LBS For Petrochemical
