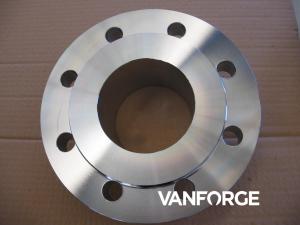

150LBS Austenitic / Duplex Lap Joint Forged Steel Flange High Toughness

Name: 150LBS Austenitic Duplex Lap Joint Forged Steel Flange High Toughness
Brand: VANFORGE
Price: 1 USD

China 150LBS Austenitic / Duplex Lap Joint Forged Steel Flange High Toughness wholesale

Brand Name : VANFORGE

Certification : ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED

Place of Origin : China

MOQ : 10 pcs

Payment Terms : L/C, T/T

Supply Ability : 3000 pcs per month

Delivery Time : 30 days

Packaging Details : Seaworthy package for export

Material : Austenitic stainless steels, duplex stainless steels

Process : Forged, machined

Treatment : Stress-relieved

Surface : Bright

Application : Petrochemical, chemical, paper and pulp

Feature : High precision

Standard : ANSI, ASTM, ASME, EN, DIN, JIS, GOST

Price : Negotiable

Contact Now

ASTM A182 ASME B16.5 150LBS forged stainless steel lap joint flange

Vanforge holds a large stock of ANSI/ASME flanges in various types of stainless steels. Our program of stainless ANSI/ASME flanges covers the following materials:

Austenitic stainless steels: ASTM 304/304L and ASTM 316/316L
Duplex stainless steel: UNS S31803 / EN 1.4462
Super-duplex stainless steel: UNS S32750 / EN 1.4410

Standard specification for ANSI/ASME flanges from stock

Flanges, forged, ASTM A182, F304/304L or F316/316L (dual marked and certified), ASME B16.5, annealed and fully machined, raised face, smooth finish (125-250 RMS / 3.2-6.3µM) to MSS-SP6, hardness to NACE MR0175 latest edition. IC checked to ASTM A262 E and PMI tested.

Vanforge's ANSI/ASME flanges are certified according to EN 10204/3.1.

Stainless steel lap joint flange, 150LBS

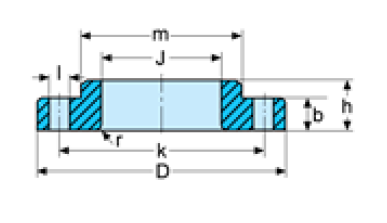

Technical date:

150LBS Austenitic / Duplex Lap Joint Forged Steel Flange High Toughness

ASTM A182, ASME B16.5

Flat face, smooth finish (125-250 RMS / 3.2-6.3 µm)

Product code example:

FFLJ-316L-2-150

● = Standard

Pipe		Flange					Hub	Drilling template			Weight	Standard
Nom.size	O.D.	D	J	b	h	r	m	l	k	No. of holes	kg/pce	ASTM316L
in.	mm	mm	mm	mm	mm	mm	mm	mm	mm
1/2 3/4 1 1 ½	21.3 26.7 33.4 48.3	88.9 98.6 108.0 127.0	22.9 28.2 35.1 50.0	11.2 12.7 14.2 17.5	15.7 15.7 17.5 22.4	3.0 3.0 3.0 6.4	30.2 38.1 49.3 65.0	15.7 15.7 15.7 15.7	60.5 69.9 79.2 98.6	4 4 4 4	0.390 0.560 0.780 1.320	● ● ● ●
2 3 4 6	60.3 88.9 114.3 168.3	152.4 190.5 228.6 279.6	62.5 91.4 116.8 171.5	19.1 23.9 23.9 25.4	25.4 30.2 33.3 39.6	7.9 9.7 11.2 12.7	77.7 108.0 134.9 192.0	19.1 19.1 19.1 22.4	120.7 152.4 190.5 241.3	4 4 8 8	2.060 3.850 5.300 7.450	● ● ● ●

Production facilities:

150LBS Austenitic / Duplex Lap Joint Forged Steel Flange High Toughness
